Item
|
Specification
|
Note
|
|
Environmental Conditions
|
Temperature
|
-25～+85℃
|
|
|
Relative Humidity
|
≤95%(40℃)
|
|
Type
|

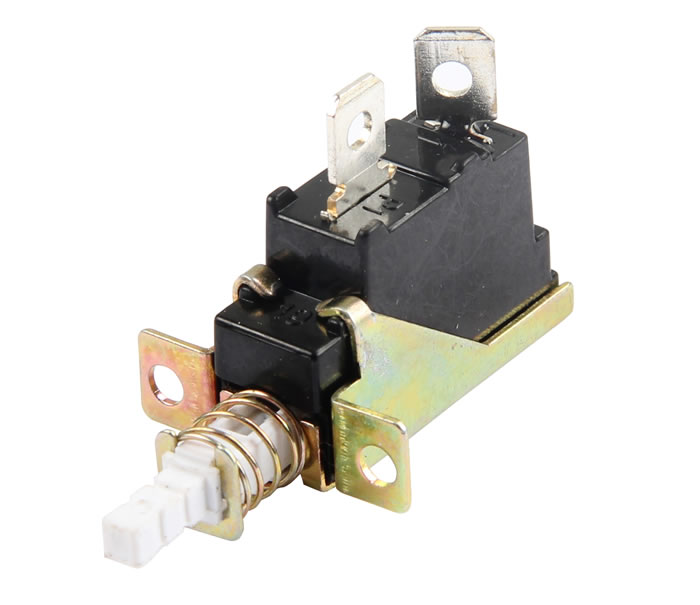

KDC-A04 series
|
5A/80A
|
|
Rated Voltage
|
250V～
|
|
|
Contact Resistance
|
≥30MΩ
|
|
|
Insulation Resistance
|
≥100MΩ
|
DC 500V
|
|
Voltage-Proof
|
Terminal to Terminal
|
≥1500V～
|
0.5mA
|
|
Terminal to All Metal Frame
|
≥5000V～
|
|
Operating force
|
2～8N
|
|
|
Robustness of actuation
|
perpendicular direction
|
≥10N
|
15 S
|
|
Push force on operating direction
|
≥50N
|
1 min
|
|
Push force on operating direction
|
≥10N
|
15S at off position
|
|
Lifespan
|
≥10000 times
|
At Rated Voltage and Current
|
|
Flammability
|
FH2
|
|
|
Style of mounting hole
|
Ф3.2 or M3
|
Choices for users
|
|
Distance between mounting holes
|
20,25,30,35
|
|
Terminal
|
Copper, silver-plated
|
|
|
