Product name

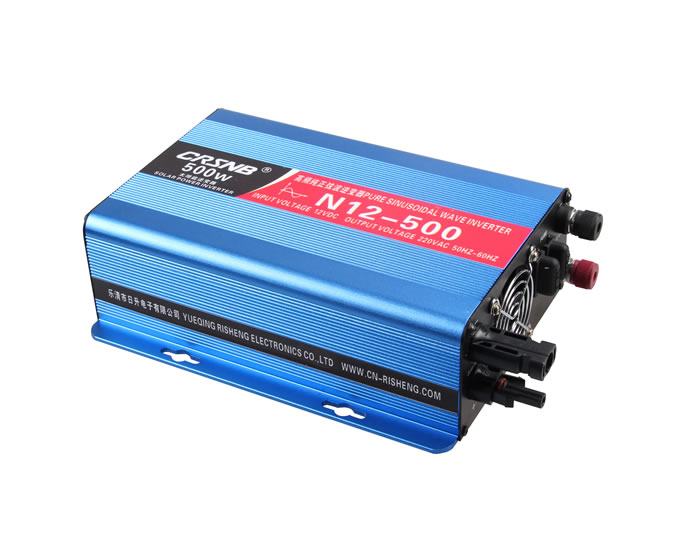

CRS-N ××500 Series Solar Power Inverter

Dimension（mm）

265*174*70

Package(mm)

315*250*125

N.W.(kg)

2.15

G.W.(kg)

2.40

Output Power

500W

Peak Power

1000W

DC Input Voltage

12/24/48VDC

AC Output Voltage

110-120/220-240VAC

Frequency

50/60HZ

Output Waveform

Pure Sine Wave

Output Harmonic Content

≤3%

Working Temp

-20℃-50℃

Operating Voltage

10-15/20-30/40-60V

High-Limit

60℃-70℃

Low-voltage Alarm

10.5/21/42±0.5V

No-load Current

1/0.6/0.4A

Low-voltage Protection

10/20/40+/-0.5V

Over-voltage Protection

15.5/31/62+/-2V

Cooling Fan

Smart Thermostat

Short Circuit Protection

Constant Clipping Mode

Input Reverse Connection Protection

Fuse Burn-out

Charging Current

40/40/30A

Solar Charge Controller

Build-in Controller

Cover

Aluminum Alloy material

Solar Charge Control

Three-Stage Charging. Fast Charge---Constant Pressure---Floating Charge

Over Load Protection

600W，depanding on the extent set off delay2~10S

Green LED Indicator Light

Inverter output, normal operation

Red LED Indicator Light

Low/over voltage,over load,high temp,short circuit,input reverse connection)conneConnection,)
