Product name

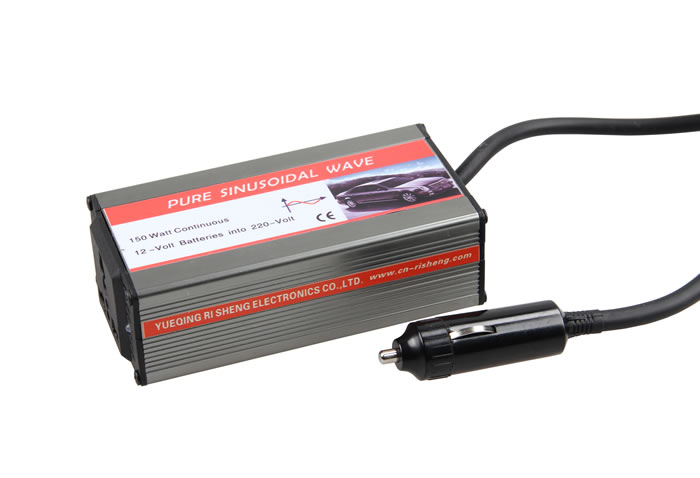

CRS-N××150 Series Pure Sine Wave Inverter(Car Power Inverter)

Package(mm)

170*110*75

N.W.(kg)

0.46

G.W.(kg)

0.57

Output Power

150W

Peak Power

300W

DC Input Voltage

12/24VDC

AC Output Voltage

110-120/220-240VAC

Frequency

50/60HZ

Output Waveform

Pure Sine Wave

Working Temp

-20℃-50℃

Output Harmonic Content

≤3%

Operating Voltage

10-15/20-30V

Low-voltage Protection

10/20+/-0.5V

Low-voltage Alarm

10.5/21+/-0.5V

Over-voltage Protection

15.5/31+/-2V

Short Circuit Protection

Constant Clipping Mode

High-Limit

60℃-70℃

Cooling Fan

Smart Thermostat

Cover

Aluminum Alloy material

Over Load Protection

180W，depanding on the extent set off delay2~10S

Green LED Indicator

Green LED indicator light(Inverter output, normal operation)

Red LED Indicator

Red LED Indicator light(Low/over voltage,over load,high temp, short circuit)
