Product name

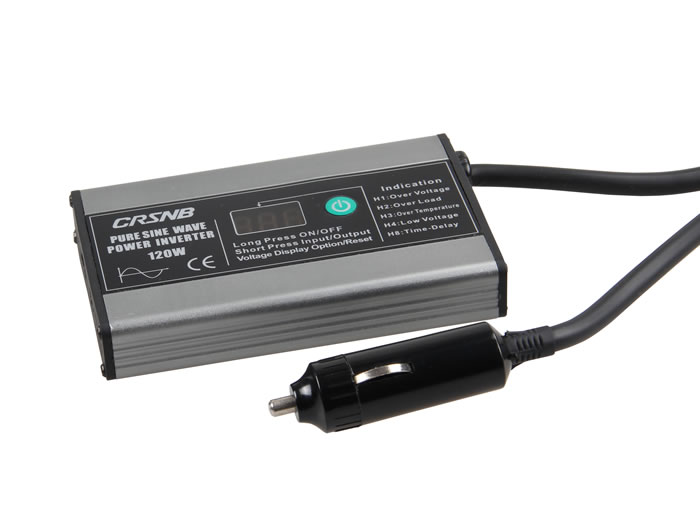

        CRS-N12120 Pure Sine Wave Inverter(Car Power Inverter)

Package(mm)

180*130*55

Output Power

120W

N.W.(kg)

0.28

Peak Power

250W

G.W.(kg)

0.46

Output Waveform

Pure Sine Wave

DC Input Voltage

10-14.5VDC

AC Output Voltage

110-120/220-240VAC

USB Output

5VDC,500mA

Working Temp

-20℃-50℃

Voltage Display

Input/Output Voltage

Output Harmonic Content

≤3%

ON/OFF

Long Press

Input/Output

Short Press

Operating Voltage

10-15V

Low-voltage Protection

10+/-0.5V

Low-voltage Alarm

10.5±0.5V

Over-voltage Protection

15.5+/-2V

Short Circuit Protection

Constant Clipping Mode

High-Limit

60℃-70℃

Cooling Fan

Smart Thermostat

Cover

Aluminum Alloy material

Over Load Protection

150W，depanding on the extent set off delay2~10S

LED Display

H1：Over Voltage、H2：Over Load、H3：Over Temperature、H4：Low Voltage、H8：Time Delay
